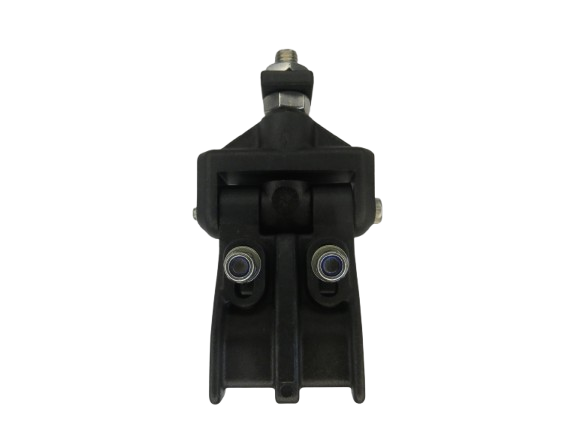

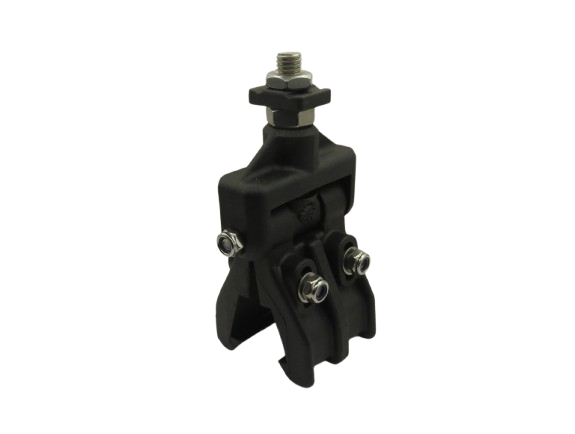

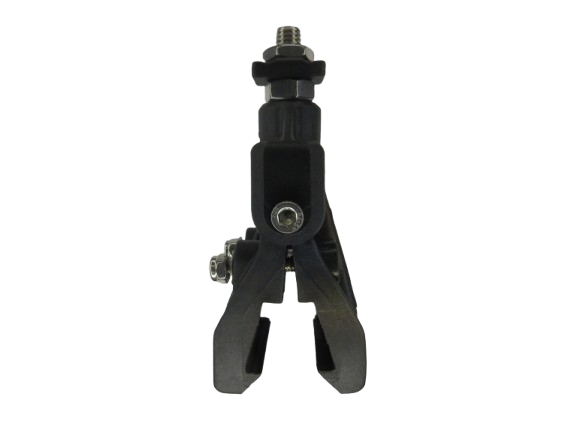

KLIP-LOCK (M430) ROOF BRACKET

TECHNICAL DATA:

The system weighs ±230 grams and is made of glass-filled polymer. It uses stainless steel fasteners with a torque specification of 20 Nm and a profile-dependent clamp torque spec. The rail fixing point is metric M10, and it can withstand a maximum wind load of 48 m/s inland and 44 m/s in coastal areas.

LIFECYCLE:

The system comes with a 12-year warranty. Its expected lifespan is over 15 years inland, over 12 years in coastal areas, and over 12 years in industrial environments.

ATTRIBUTES:

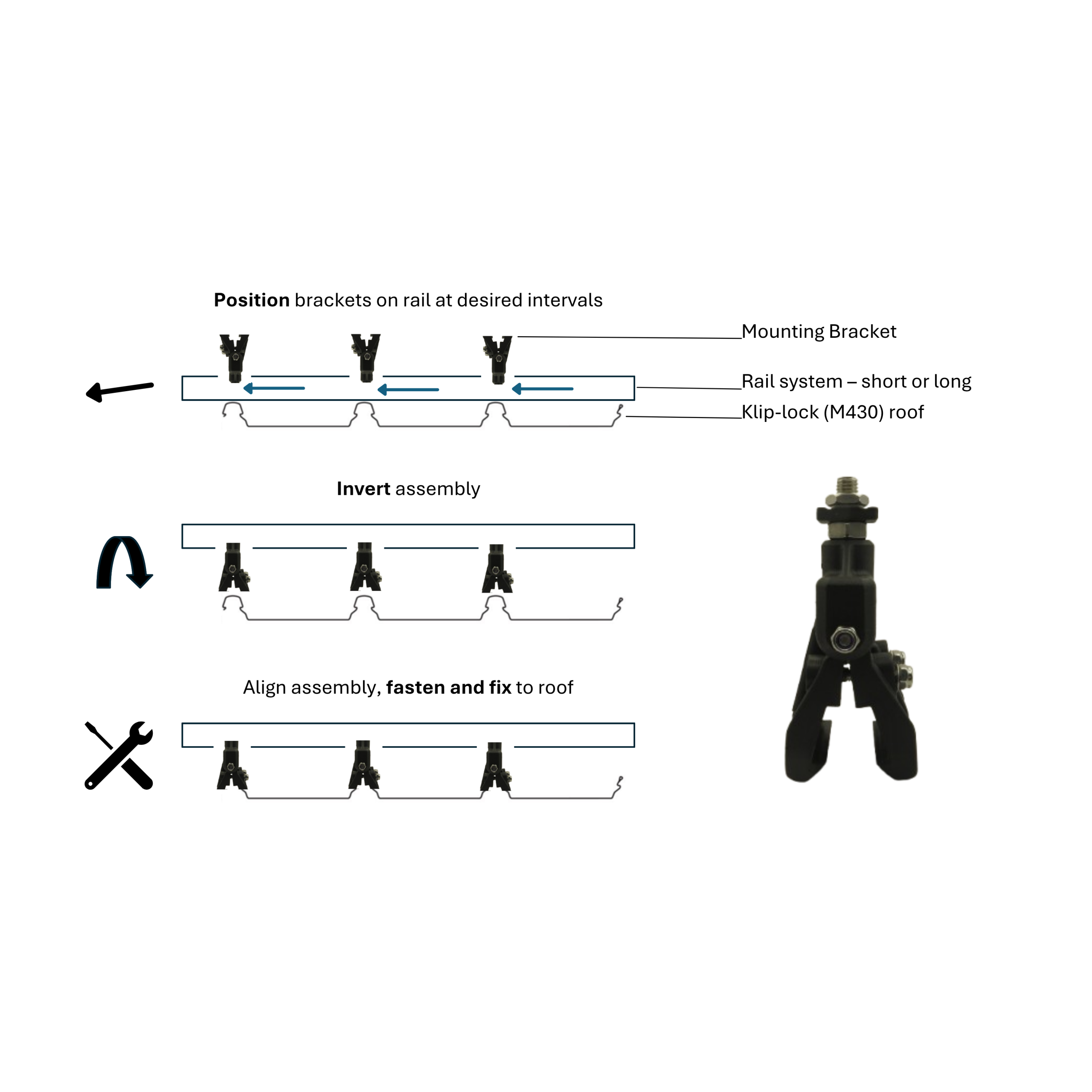

The corrosion-resistant system features a railing design with adjustable height settings, facilitated by the innovative RAPID-RIG installation mechanism. Lightweight yet exceptionally durable, it incorporates an adjustable level hinge for seamless maneuverability. Engineered with an optimal strength-to-weight ratio and UV-resistant properties, the system is rigorously tested in SANAS-accredited laboratories. Its non-penetrating design ensures surface integrity, while rails can be positioned either parallel to or across the rib structure for versatile installation.

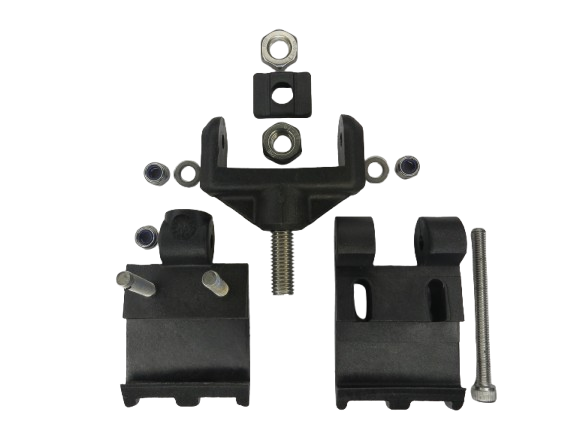

SUPPLIED ACCESSORIES:

• Set – Full and Half nuts M10 (Stainless steel)
• Set screw:  M10 x 40mm
• M6 x 65mm Cap Screw (with nyloc nut)
• 2 x M6 x 40mm Set screws (with nyloc nuts and washers)

COMPATIBLE PROFILES:

The system is compatible with Springlok™ 700 (YOUNGMAN), KingKlip™ 700 (MACSTEEL), Klip-Lok™ 700 (GRS), Klip-Tite™ 700 (GRS), Saflok™ 700 (SAFINTRA), Saflok™ 410 (SAFINTRA), and Surelok™ 700 (ROOFCO).

COMPATIBLE RAILS:

The system is compatible with NAS Moulds patented aluminium rail.
